H2S LVL Timber E14 | Structural Beams, Joists & Bearers

H2S LVL Timber E14 — Structural Beams, Joists & Bearers

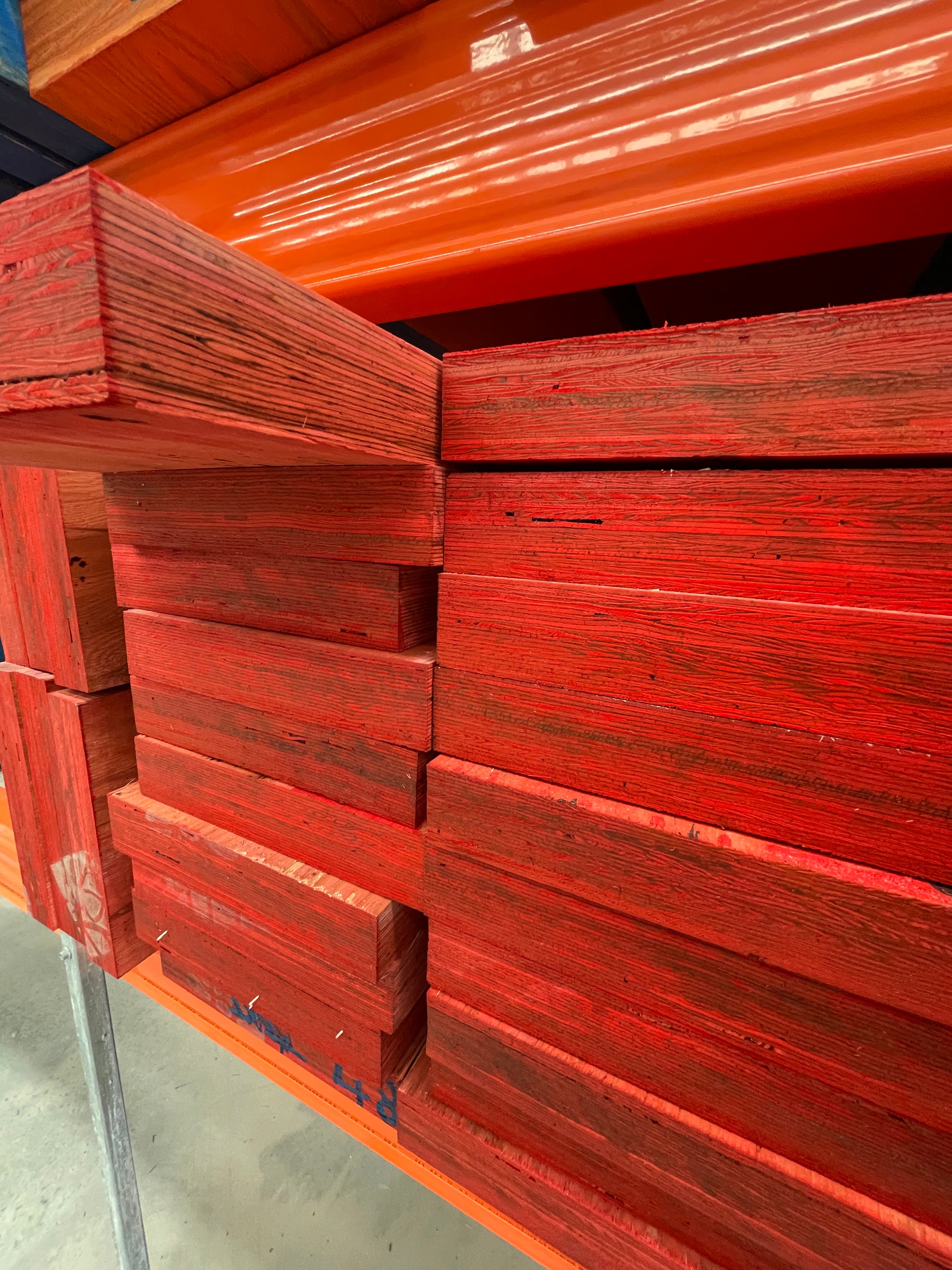

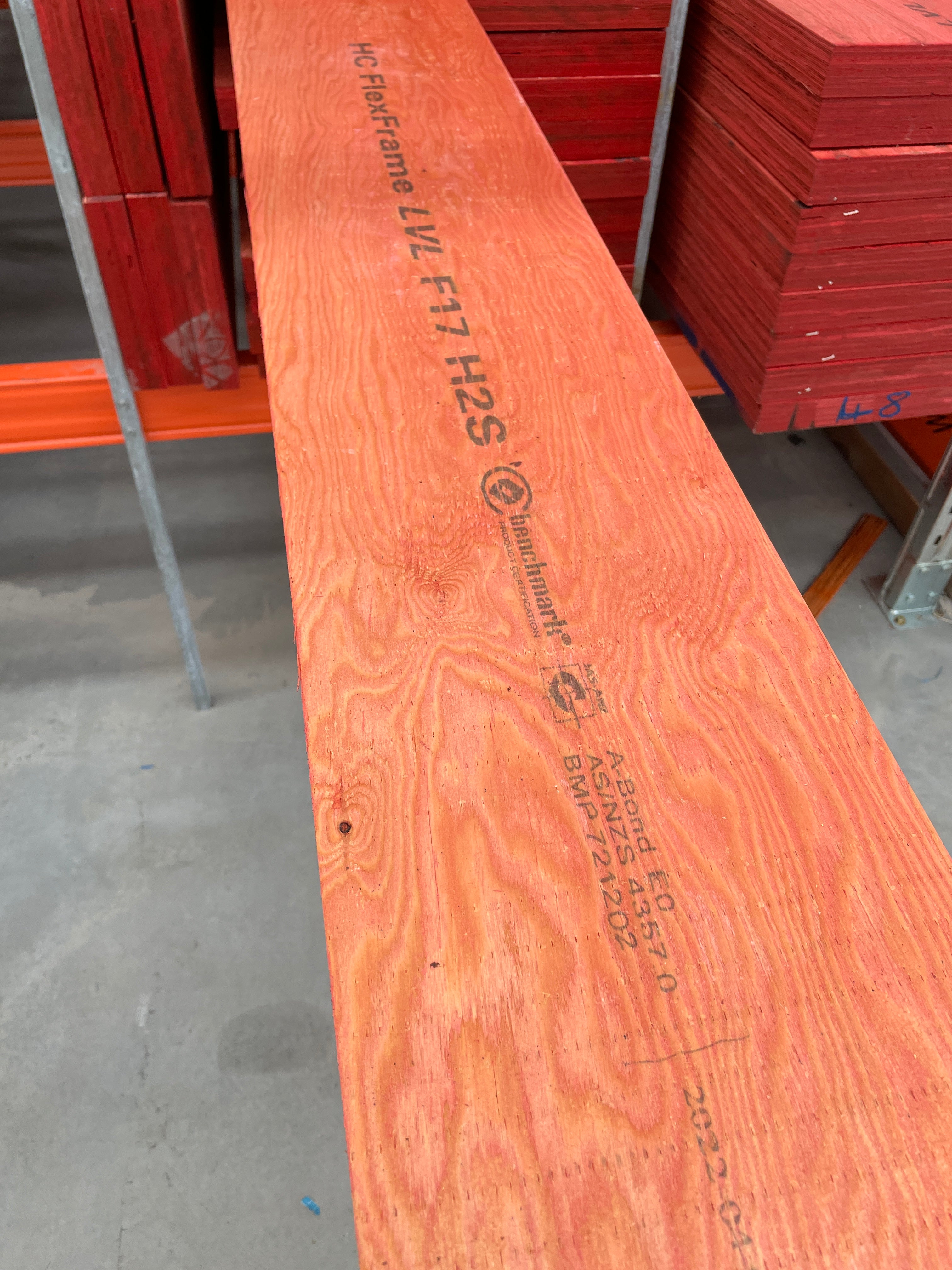

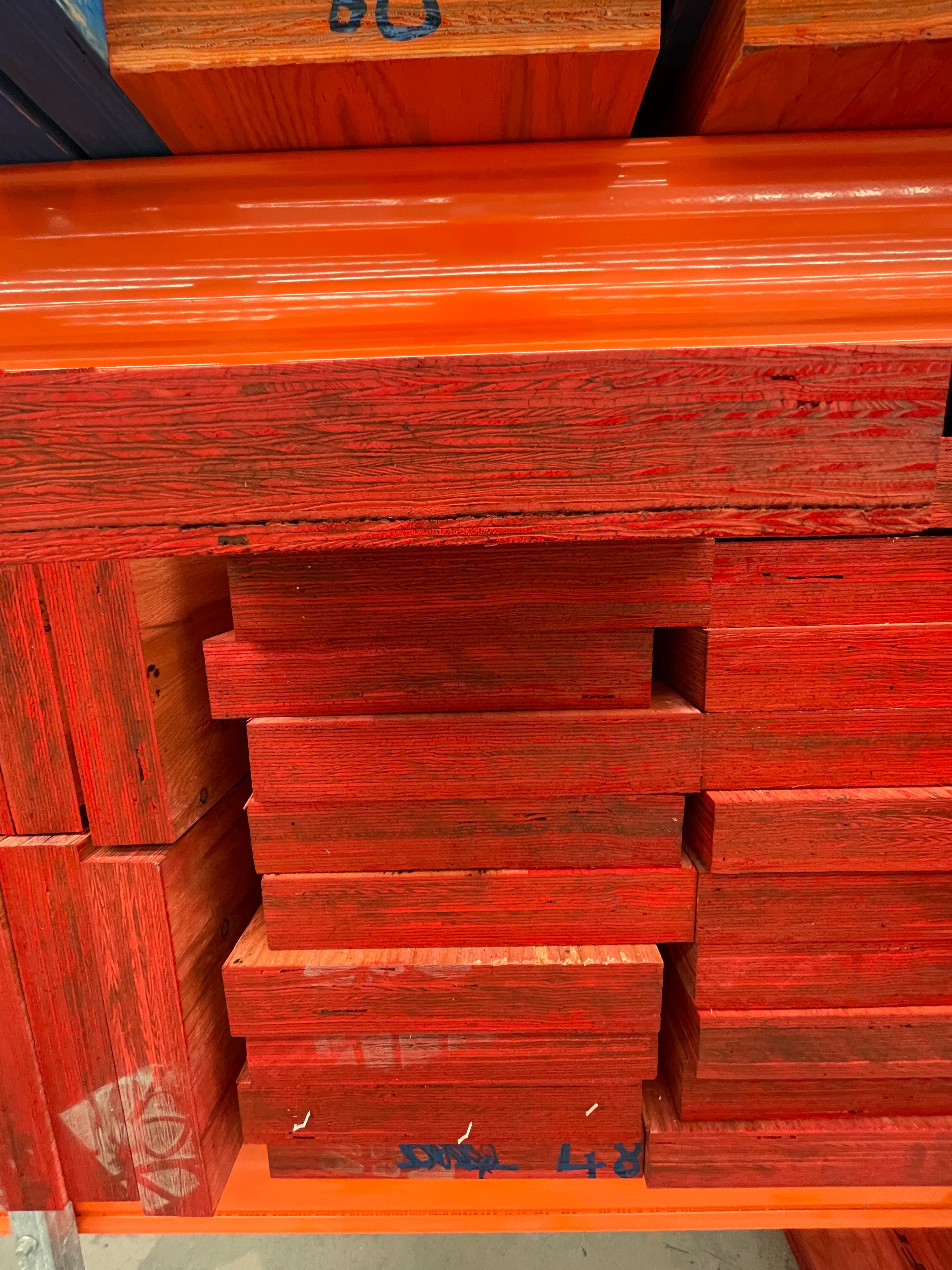

Laminated Veneer Lumber (LVL) is engineered timber made by bonding thin wood veneers together with the grain running lengthwise. The result is straighter, more consistent and more predictable than solid sawn timber, with far less twisting, bowing or splitting — which makes it a go-to for joists, bearers and beams where a flat, true frame matters.

Our LVL is rated E14 (a stiffness rating, MOE 14,000 MPa) and is commonly used as a direct substitute for F17 hardwood. It is H2S treated for termite protection, suited to above-ground framing south of the Tropic of Capricorn — including all of Victoria. Stocked in 45mm thickness, five depths from 90mm to 290mm, and 3.6m, 4.8m and 6.0m lengths.

Applications

• Floor joists and bearers (internal / protected from weather)
• Lintels and beams over doors, windows and openings
• Roof beams, ridge beams, rafters and ceiling joists
• Renovation, extension and second-storey framing
• Not suitable for external exposed, wet or in-ground use

Specifications

• Product: Laminated Veneer Lumber (LVL)
• Stiffness rating: E14 (MOE 14,000 MPa)
• Stress grade equivalent: Direct substitute for F17 hardwood
• Treatment: H2S — termite protection, south of the Tropic of Capricorn
• Exposure: Internal / above-ground, protected from weather
• Thickness: 45mm
• Depths: 90, 140, 190, 240, 290mm
• Lengths: 3.6m, 4.8m, 6.0m
• Structural: Yes

Delivery & Fulfilment

Flat-rate delivery on our own trucks across Melbourne and Greater Melbourne — three flat rates from $89, dispatched in 2–5 days. Or pick up free from our Epping yard, 2 Graystone Ct, Epping VIC 3076.

FAQ

Can H2S LVL be used outdoors?
No. H2S treatment is for termite protection in above-ground, internal or weather-protected framing. It is not suitable for exposed external, wet or in-ground use.

Is E14 LVL the same as F17?
E14 is a stiffness rating rather than an F-grade, but E14 LVL is commonly used as a direct substitute for F17 hardwood. Always check your span tables or engineering to confirm the size you need.

What span can I get with each size?
Spans depend on the load, spacing and how the member is used, so we can't give span advice. Use the span tables in your plans or check with your builder, building designer or engineer.

Can I cut it to length on site?
Yes. Seal any cut ends with a suitable timber end-sealer or preservative to keep the termite protection intact.

Do you stock other lengths or sizes?
We stock 3.6m, 4.8m and 6.0m lengths. If you need something else, email info@justplywood.com.au and we'll check availability.
